Description

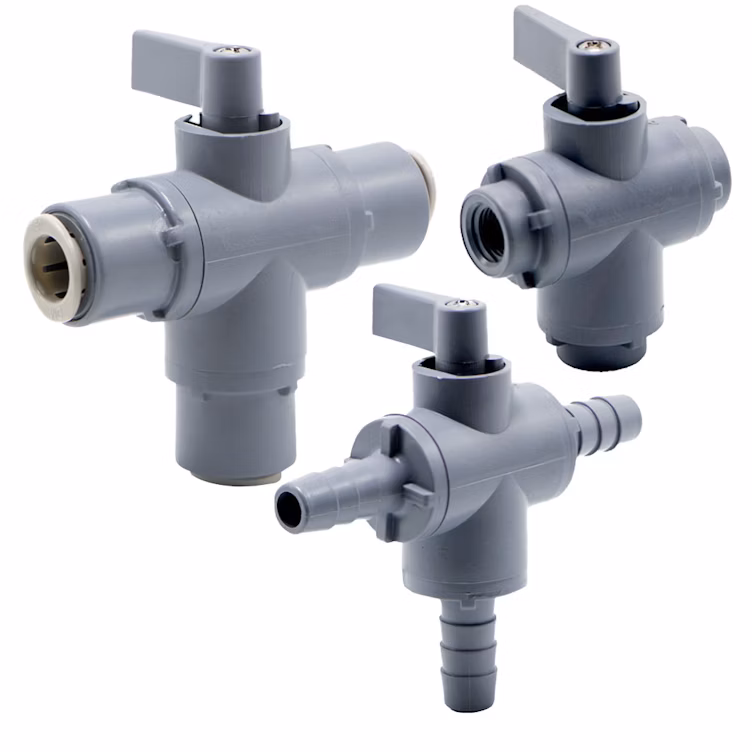

The 326 Series three-way ball valve design promotes multiple configurations to fit the exact end use application. The bottom port is common and the 326 Series valve can be used as a diverter or selecting valve. The handle has 180° rotation and lies over the open port. When the handle is rotated 90° from either port, flow is shut off to both ports.
- PVC
- FKM, Buna-N or EPDM seals
- Good chemical resistance
- Flag handle
- 0.312″ diameter through hole in ball
- Not for vacuum
- Maximum pressure: 125 psi
- Maximum temperature: 140°F
- NSF 42 listed (except valve with FKM seals)
